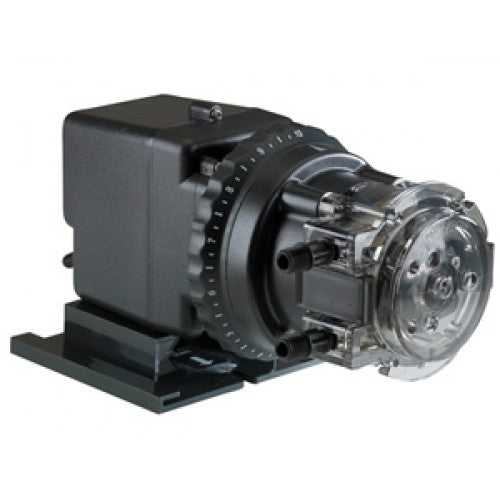

Stenner Classic Series Peristaltic Pump | 22 GPD, 100 PSI Stenner Build Item #: 45MJH7A1STAA (Model 45MHP22)

The Stenner 45MJH7A1STAA is the high-capacity solution for the Classic 45 Series High-Pressure line. This single-head adjustable metering pump is engineered to deliver a precise output of 1.1 to 22.0 Gallons Per Day (GPD) at pressures up to 100 PSI. It is the ideal choice for demanding commercial and industrial water treatment applications requiring higher chemical volumes.

Build Specifications:

Voltage: 120V 60Hz (Standard NEMA 5-15P Plug)

Tubing Size: 1/4" White Suction/Discharge Tubing

Pressure Rating: 100 PSI (6.9 bar) Max

Tube Material: FDA-approved Santoprene® (#7 High-Pressure Tube)

Mounting: Includes Wall Mount Bracket (T-Style)

Performance (Approximate @ 60Hz):

GPD: 1.1 to 22.0

GPH: 0.05 to 0.92

LPD: 4.2 to 83.3

Standard Accessories Included: (3) 1/4" Connecting Nuts, (3) 1/4" Ferrules, (1) Injection Check Valve (100 PSI), (1) Weighted Suction Line Strainer, (1) 20' Roll of 1/4" White Tubing, (1) Additional Spare Pump Tube (#7), and a Wall Mount Bracket.

Important Note: 220 Volt models are available at no additional charge. If you require 220V (Item # 45MJH7B1STAA), please request it in your order notes or contact us directly

Proudly Made in the USA.

View manufacturer specs here

45MHP22 Stenner Peristaltic Pump Classic Series 22 GPD, 100 psi
