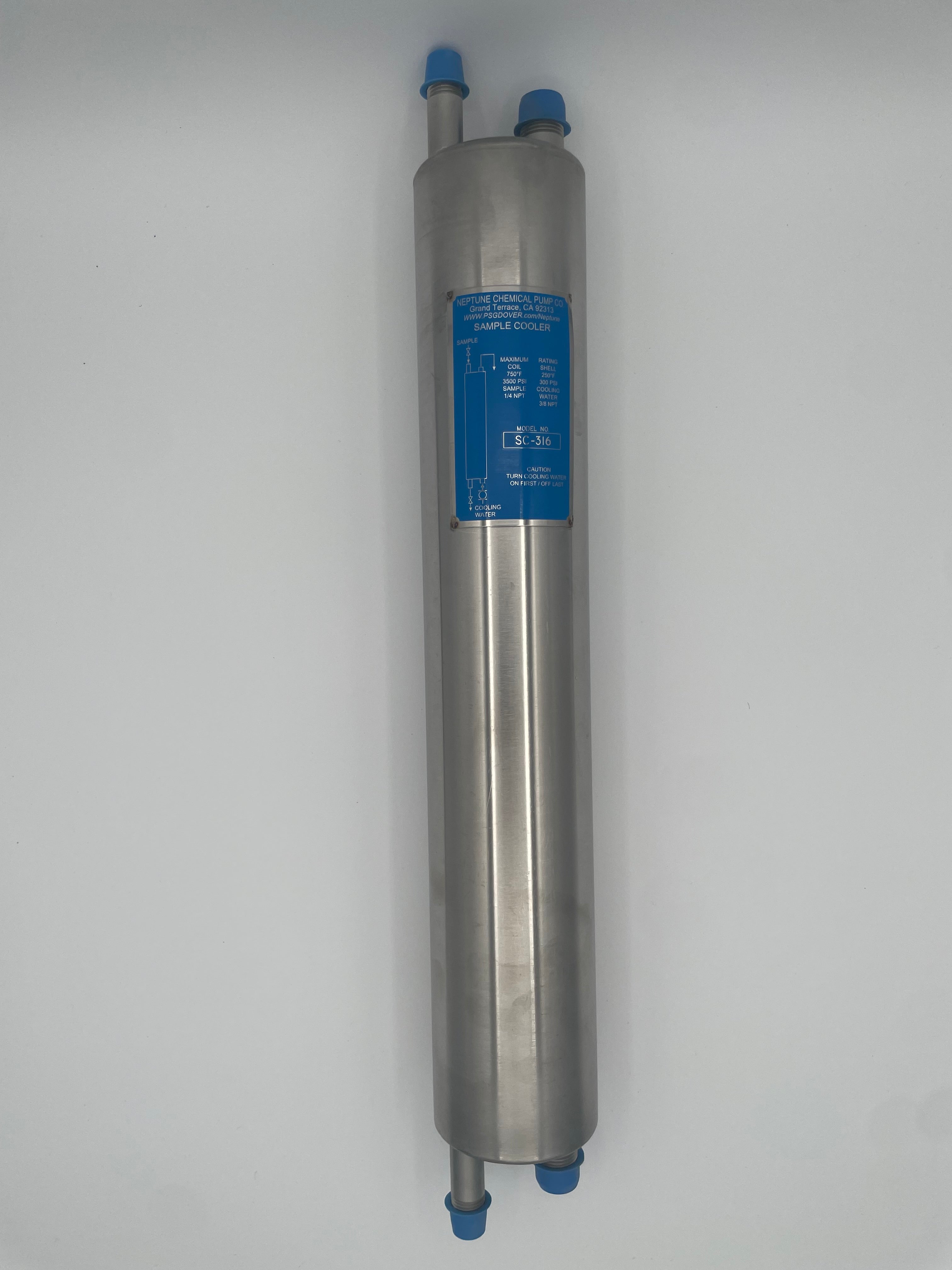

Neptune SC-316 Stainless Steel Sample Cooler

The Neptune SC-316 is a high-efficiency, industrial-grade heat exchanger designed for the safe collection of high-temperature boiler water and steam samples. By cooling process fluids to a safe handling temperature, the SC-316 prevents "sample flashing" (evaporation), ensuring that chemical concentrations remain intact for precise laboratory analysis of pH, conductivity, and inhibitor levels.

Premium 316 Stainless Steel Engineering Unlike economy coolers that use inferior alloys, the SC-316 features a rugged, all-welded construction where both the internal coil and the external shell are made of 316 Stainless Steel. This provides maximum resistance to corrosion, pitting, and thermal stress. The non-removable coil design ensures a leak-proof boundary between your high-pressure sample and the cooling water.

Technical Specifications:

Coil Material: 316 Stainless Steel (High-Pressure Side)
Shell Material: 316 Stainless Steel (Coolant Side)
Maximum Coil Pressure: 3,500 PSI
Maximum Shell Pressure: 250 PSI
Maximum Temperature: 750°F
Heat Exchange Area: 1.0 Square Foot
Design: Compact Counter-Flow for maximum heat transfer efficiency

Professional Safety and Compliance: The SC-316 is the industry standard for power plants, industrial mechanical rooms, and large-scale HVAC facilities. It allows operators to comply with safety protocols by reducing sample temperatures to a safe touch-range (typically under 100°F). Its heavy-duty 316SS shell is built to withstand the humid and corrosive environments typical of boiler blowdown stations and steam galleries.

View manufacturer specs here

SC-316 Neptune Stainless Steel Sample Cooler
