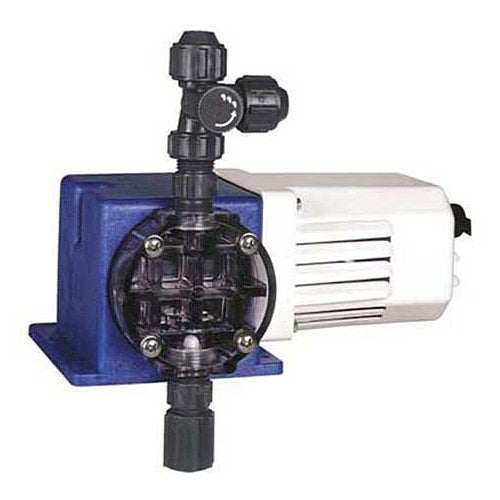

Pulsafeeder Chemtech Series 100 | Model X030-XC-AAAAXXX (230V)

The Pulsafeeder Chemtech Series 100 Model X030-XC is the high-capacity solution for 230V power environments. Delivering a powerful 30 GPD at pressures up to 100 PSI, this mechanical diaphragm pump is engineered for high-demand chemical injection. It is widely used in commercial cooling towers, large-scale industrial water treatment, and municipal disinfection systems where high volume and 230V compatibility are required.

Product Specifications:
- Flow Rate: 30 Gallons Per Day (GPD) / 4.73 Liters Per Hour (LPH)
- Pressure Rating: 100 PSI (7 bar) Maximum
- Voltage: 230V / 60Hz
- Control: Single Manual Control (Adjustable Stroke Length)
- Head & Fittings: Clear PVC Head with Black PVC Fittings
- Diaphragm: Long-life CSPE (Hypalon-equivalent)
- Valve Balls: Ceramic

Complete Installation Kit Includes:
- 1/4" Suction Tubing
- 1/4" Discharge Tubing
- Weighted Suction Foot Valve & Strainer
- Injection Check Valve Assembly
- Bleed Valve Assembly

The Series 100 is the professional's choice for durability, featuring a fan-cooled, thermally protected motor and a unique quad-check valve system for superior priming. The clear PVC head provides high visibility, allowing operators to monitor the pumping action and chemical flow in real-time.

View manufacturer specs here

X030-XC-AAAAXXX Chemtech Series 100 Pulsafeeder
