Stenner S505G Pump | 315 GPD | 25 PSI | 120V | NEMA 4X - WTR

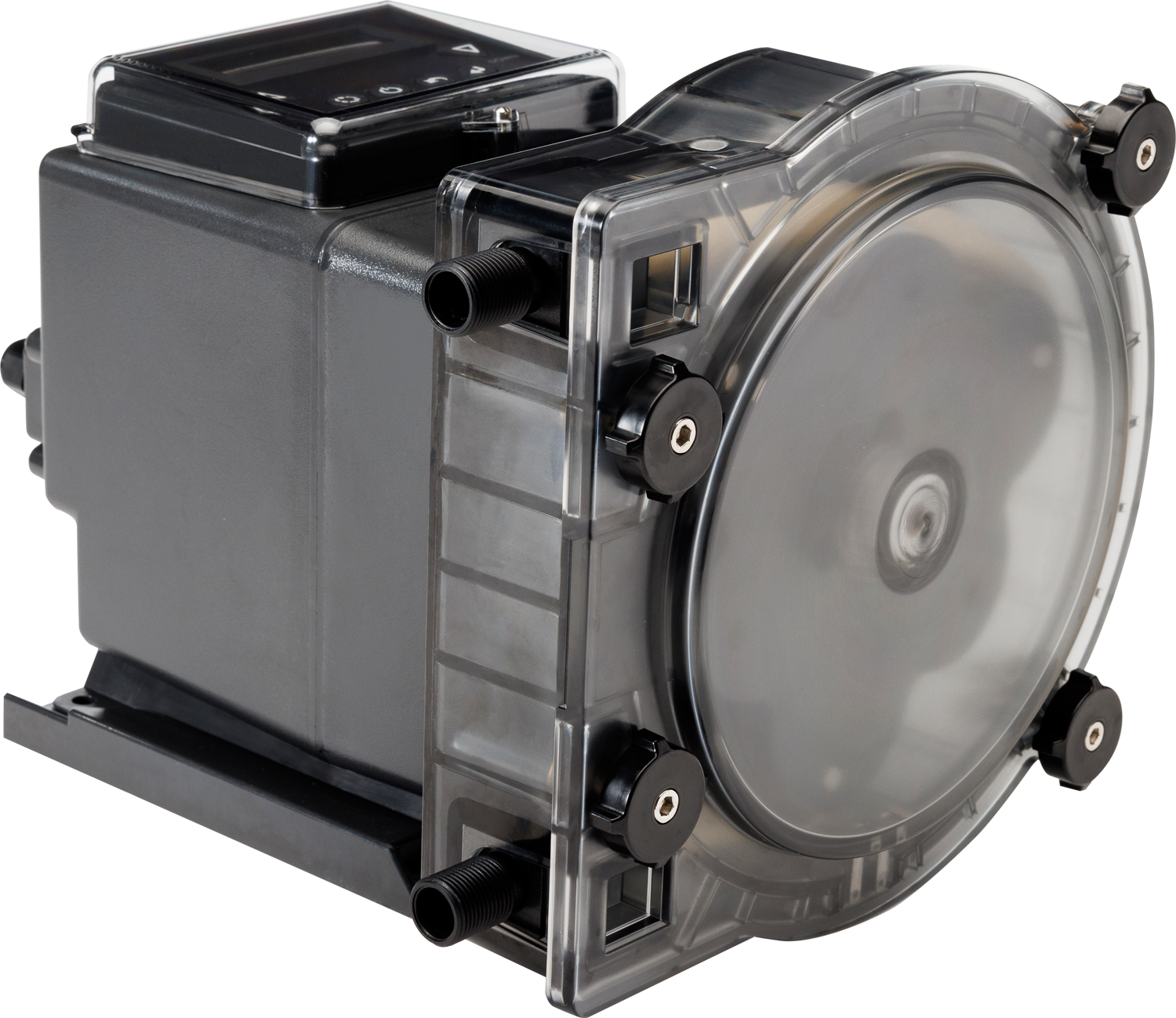

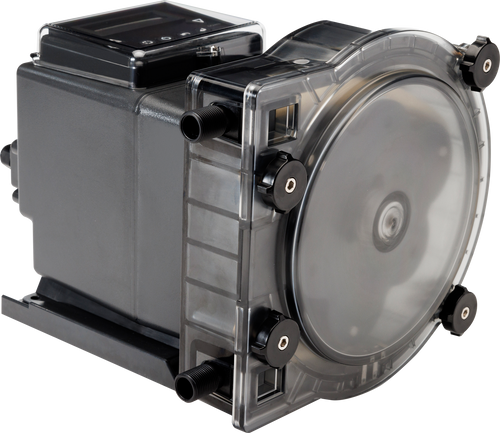

Stenner S505G (S50 Series) – Smart Peristaltic Metering Pump

The Stenner S505G is a high-performance, smart peristaltic pump designed for professional water treatment applications requiring high flow at lower pressures. Part of the advanced S50 Series, this model delivers a versatile flow range of 3.2 to 315 GPD at pressures up to 25 PSI. It features a brushless DC motor and a rugged NEMA 4X enclosure, ensuring reliable, quiet operation in demanding environments.

Key Technical Features:

• Performance: 3.2 to 315 Gallons Per Day (GPD) at 25 PSI max pressure.

• Power: 120 Volt, 60Hz (230 Volt and other configurations available upon request).

• Motor: Brushless DC motor with ball bearing support for quiet, continuous 24/7 duty.

• Enclosure: NEMA 4X rated totally enclosed housing for indoor/outdoor protection.

• Controls: Digital OLED display with multiple operation modes (4-20mA, 0-10VDC, Pulse, and 7-Day Timer).

• Maintenance: Patented QuickPro Pump Head for tool-less tube replacement in seconds.

• Safety: Integrated leak detection system and programmable tube-life timer.

Included with this Pump:

• (1) Stenner S505G Pump (120V)

• (1) 20' Roll of 3/8" White Suction/Discharge Poly Tubing

• (1) Weighted Suction Line Strainer (3/8")

• (1) Ball Check Valve (3/8")

• (3) Connecting Nuts and (2) Adapters (3/8")

• (1) Additional Replacement Pump Tube

• (1) Mounting Bracket and Quick Start Guide

Note: Please call or email for 230 Volt models or specifications not listed here.

                                                Specs Sheet Here
