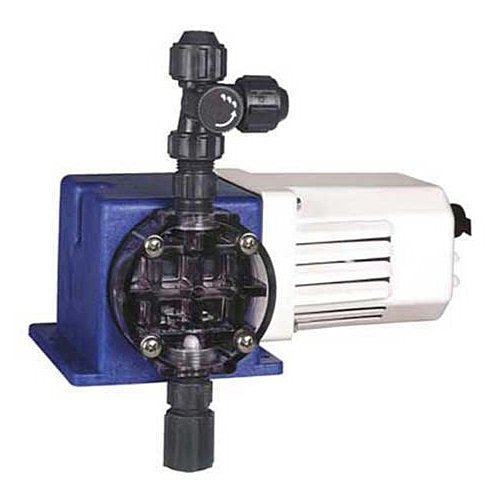

Pulsafeeder Chemtech Series 100 | 30 GPD 100 PSI | X030-XA-AAAAXXX

Pulsafeeder Chemtech Series 100 | Model X030-XA-AAAAXXX

The Pulsafeeder Chemtech Series 100 Model X030 is the high-capacity workhorse of the Series 100 line. Delivering a powerful 30 GPD at pressures up to 100 PSI, this mechanical diaphragm pump is specifically designed for high-demand water treatment applications. It is the ideal choice for large-scale disinfection, industrial pH adjustment, and wastewater treatment processes that require maximum volume without sacrificing pressure performance.

Product Specifications:
- Flow Rate: 30 Gallons Per Day (GPD) / 4.73 Liters Per Hour (LPH)
- Pressure Rating: 100 PSI (7 bar) Maximum
- Voltage: 115V / 60Hz
- Control: Single Manual Control (Adjustable Stroke Length)
- Head & Fittings: Clear PVC Head with Black PVC Fittings
- Diaphragm: Long-life CSPE (Hypalon-equivalent)
- Valve Balls: Ceramic

Complete Installation Kit Includes:
- 1/4" Suction Tubing
- 1/4" Discharge Tubing
- Weighted Suction Foot Valve & Strainer
- Injection Check Valve Assembly
- Bleed Valve Assembly

The Series 100 is celebrated for its heavy-duty construction, featuring a fan-cooled, thermally protected motor and a unique quad-check valve system for superior priming. The clear PVC head provides high visibility, allowing operators to monitor the pumping action and chemical flow in real-time.

View manufacturer specs here
