Pulsafeeder Chemtech Series 100 | 7 GPD 100 PSI | X007-XA-AAAAXXX

Pulsafeeder Chemtech Series 100 | Model X007-XA-AAAAXXX

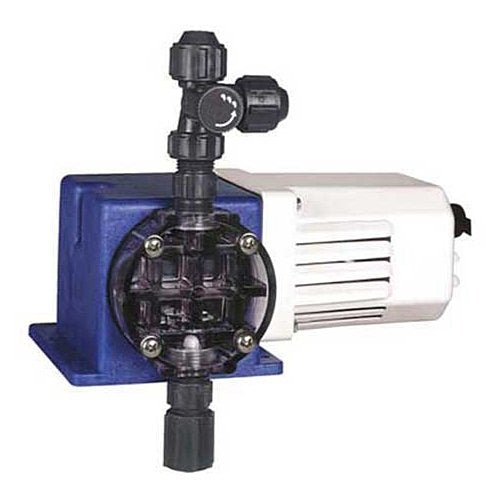

The Pulsafeeder Chemtech Series 100 Model X007 is a rugged, mechanical diaphragm metering pump designed for precise chemical feed applications. With a 7 GPD output capacity and 100 PSI pressure rating, this pump is a versatile solution for residential and commercial water treatment, including disinfection, pH adjustment, and oxidation.

Product Specifications:
- Flow Rate: 7 Gallons Per Day (GPD) / 1.10 Liters Per Hour (LPH)
- Pressure Rating: 100 PSI (7 bar) Maximum
- Voltage: 115V / 60Hz
- Control: Single Manual Control (Adjustable Stroke Length)
- Head & Fittings: Clear PVC Head with Black PVC Fittings
- Diaphragm: Long-life CSPE (Hypalon-equivalent)
- Valve Balls: Ceramic

Complete Installation Kit Includes:
- 1/4" Suction Tubing
- 1/4" Discharge Tubing
- Weighted Suction Foot Valve & Strainer
- Injection Check Valve Assembly
- Bleed Valve Assembly

Built for reliability, the Series 100 features a thermally protected motor and a robust quad-check valve system that ensures consistent priming and accurate dosing. The clear pump head allows for immediate visual verification of pump operation and chemical flow.

View manufacturer specs here
