Pulsafeeder Chemtech Series 100 | 24 GPD 100 PSI | X024-XA-AAAAXXX

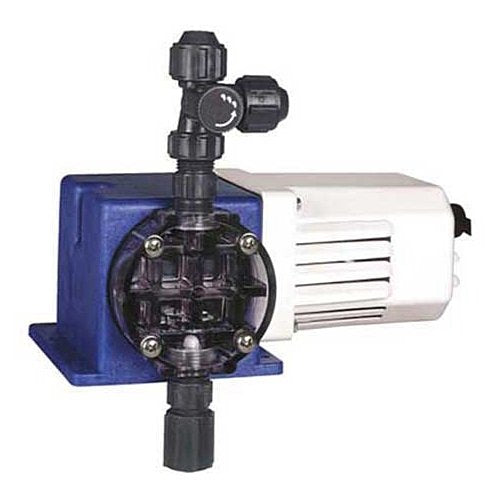

Pulsafeeder Chemtech Series 100 | Model X024-XA-AAAAXXX

The Pulsafeeder Chemtech Series 100 Model X024 is a high-output mechanical diaphragm metering pump engineered for high-demand water treatment applications. Delivering 24 GPD at pressures up to 100 PSI, this pump is the ideal solution for large-scale disinfection, wastewater treatment, and industrial chemical feed processes requiring consistent, high-volume accuracy.

Product Specifications:
- Flow Rate: 24 Gallons Per Day (GPD) / 3.78 Liters Per Hour (LPH)
- Pressure Rating: 100 PSI (7 bar) Maximum
- Voltage: 115V / 60Hz
- Control: Single Manual Control (Adjustable Stroke Length)
- Head & Fittings: Clear PVC Head with Black PVC Fittings
- Diaphragm: Long-life CSPE (Hypalon-equivalent)
- Valve Balls: Ceramic

Complete Installation Kit Includes:
- 1/4" Suction Tubing
- 1/4" Discharge Tubing
- Weighted Suction Foot Valve & Strainer
- Injection Check Valve Assembly
- Bleed Valve Assembly

The Series 100 is designed for long-term reliability with a fan-cooled, thermally protected motor and a robust quad-check valve system that ensures superior priming. The clear PVC head offers a transparent view of the pump's interior, allowing operators to verify chemical flow and valve performance at a glance.
