Pulsafeeder Chemtech Series 100 | 15 GPD 100 PSI | X015-XA-AAAAXXX

Pulsafeeder Chemtech Series 100 | Model X015-XA-AAAAXXX

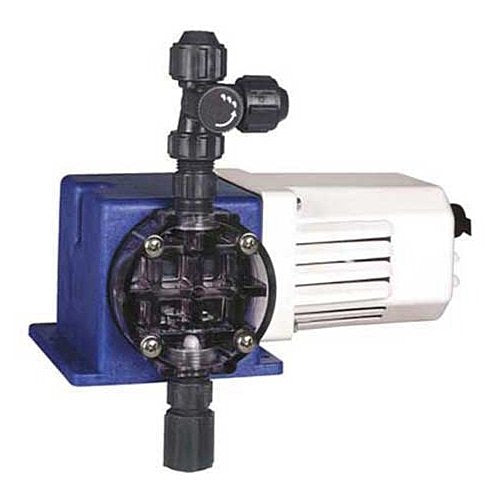

The Pulsafeeder Chemtech Series 100 Model X015 is a high-capacity mechanical diaphragm metering pump designed for consistent and accurate chemical dosing. Delivering 15 GPD at pressures up to 100 PSI, this pump is ideal for larger residential water systems, light commercial applications, and industrial water treatment processes requiring precise oxidation or disinfection.

Product Specifications:
- Flow Rate: 15 Gallons Per Day (GPD) / 2.37 Liters Per Hour (LPH)
- Pressure Rating: 100 PSI (7 bar) Maximum
- Voltage: 115V / 60Hz
- Control: Single Manual Control (Adjustable Stroke Length)
- Head & Fittings: Clear PVC Head with Black PVC Fittings
- Diaphragm: Long-life CSPE (Hypalon-equivalent)
- Valve Balls: Ceramic

Complete Installation Kit Includes:
- 1/4" Suction Tubing
- 1/4" Discharge Tubing
- Weighted Suction Foot Valve & Strainer
- Injection Check Valve Assembly
- Bleed Valve Assembly

The Series 100 is built for durability with a thermally protected, fan-cooled motor and a robust quad-check valve system for reliable priming. The clear PVC head allows for easy visual monitoring of the pump's performance and chemical flow.
