Pulsafeeder Chemtech Series 100 | 24 GPD 100 PSI 230V | X024-XC

Pulsafeeder Chemtech Series 100 | Model X024-XC-AAAAXXX (230V)

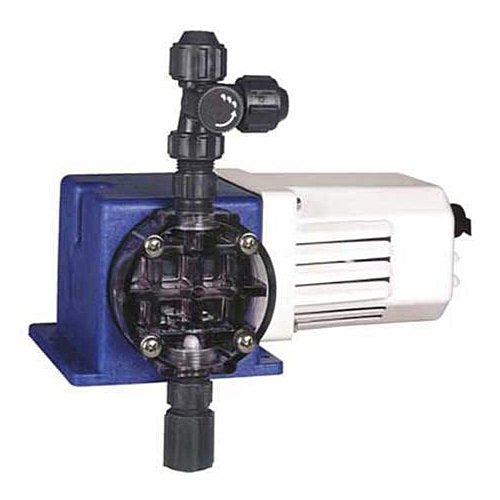

The Pulsafeeder Chemtech Series 100 Model X024-XC is a high-output mechanical diaphragm metering pump specifically engineered for 230V electrical systems. Delivering a powerful 24 GPD at pressures up to 100 PSI, this pump is designed for heavy-duty water treatment, industrial chemical dosing, and commercial disinfection where consistent, high-volume performance is critical.

Product Specifications:
- Flow Rate: 24 Gallons Per Day (GPD) / 3.78 Liters Per Hour (LPH)
- Pressure Rating: 100 PSI (7 bar) Maximum
- Voltage: 230V / 60Hz
- Control: Single Manual Control (Adjustable Stroke Length)
- Head & Fittings: Clear PVC Head with Black PVC Fittings
- Diaphragm: Long-life CSPE (Hypalon-equivalent)
- Valve Balls: Ceramic

Complete Installation Kit Includes:
- 1/4" Suction Tubing
- 1/4" Discharge Tubing
- Weighted Suction Foot Valve & Strainer
- Injection Check Valve Assembly
- Bleed Valve Assembly

The Series 100 is the industry standard for durability, featuring a thermally protected, fan-cooled motor and a robust quad-check valve system for reliable priming and dosing. The clear PVC head allows for immediate visual confirmation of the chemical feed process.
