Pulsafeeder Chemtech Series 100 | 15 GPD 100 PSI 230V | X015-XC

Pulsafeeder Chemtech Series 100 | Model X015-XC-AAAAXXX (230V)

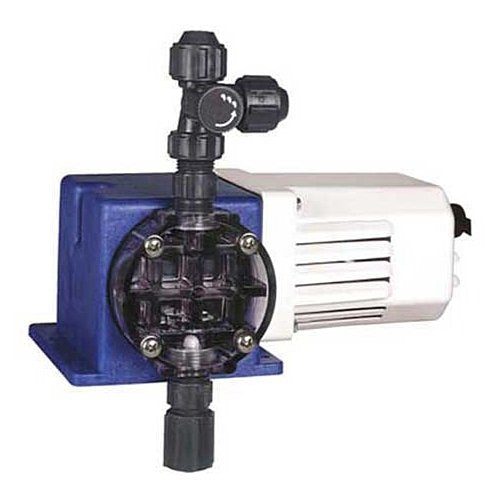

The Pulsafeeder Chemtech Series 100 Model X015-XC is a high-performance mechanical diaphragm metering pump specifically engineered for 230V power systems. Delivering a robust 15 GPD at pressures up to 100 PSI, this pump is the professional choice for large-scale residential well water treatment, commercial cooling towers, and industrial disinfection where 230V power is standard.

Product Specifications:
- Flow Rate: 15 Gallons Per Day (GPD) / 2.37 Liters Per Hour (LPH)
- Pressure Rating: 100 PSI (7 bar) Maximum
- Voltage: 230V / 60Hz
- Control: Single Manual Control (Adjustable Stroke Length)
- Head & Fittings: Clear PVC Head with Black PVC Fittings
- Diaphragm: Long-life CSPE (Hypalon-equivalent)
- Valve Balls: Ceramic

Complete Installation Kit Includes:
- 1/4" Suction Tubing
- 1/4" Discharge Tubing
- Weighted Suction Foot Valve & Strainer
- Injection Check Valve Assembly
- Bleed Valve Assembly

The Series 100 features a fan-cooled, thermally protected motor and a heavy-duty quad-check valve system to ensure consistent priming and long-term reliability. The clear PVC head provides high visibility of the pumping action, making it easy to confirm flow and troubleshoot at a glance.
