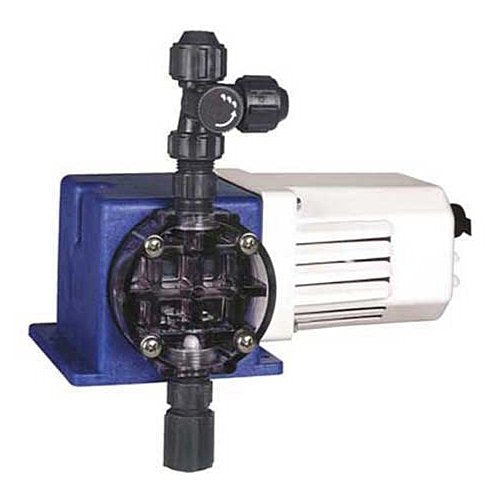

Pulsafeeder Chemtech Series 100 | 7 GPD 100 PSI 230V | X007-XC

The Pulsafeeder Chemtech Series 100 Model X007-XC is a reliable, mechanical diaphragm metering pump specifically configured for 230V power requirements. Delivering a consistent 7 GPD at pressures up to 100 PSI, this pump is a professional choice for water treatment applications requiring mid-range chemical injection volumes and high-pressure performance.

Product Specifications:
- Flow Rate: 7 Gallons Per Day (GPD) / 1.10 Liters Per Hour (LPH)
- Pressure Rating: 100 PSI (7 bar) Maximum
- Voltage: 230V / 60Hz
- Control: Single Manual Control (Adjustable Stroke Length)
- Head & Fittings: Clear PVC Head with Black PVC Fittings
- Diaphragm: Long-life CSPE (Hypalon-equivalent)
- Valve Balls: Ceramic

Complete Installation Kit Includes:
- 1/4" Suction Tubing
- 1/4" Discharge Tubing
- Weighted Suction Foot Valve & Strainer
- Injection Check Valve Assembly
- Bleed Valve Assembly

The Series 100 is engineered for continuous duty with a thermally protected motor and a robust quad-check valve system for superior priming. The clear PVC head provides an immediate view of the pump's operation, ensuring your chemical feed system is running efficiently.
